Overview
The Idrolab RDWC system is a highly effective method of producing immense yields. Comprised of multiple 42L pots, the system is connected via 62mm pipework via the Epicentre, also known as the brain bucket. This can then be attached to your tank of choice.
General Info
- Each Module has a capacity of 42L
- Air-Ring (Bubbler) in each pot
- Air Diffuser in the Epi-Centre (Brain)
- Highflow 63mm Bulkhead and Pipe
- 750mm centre to centre
- Deep Water Culture

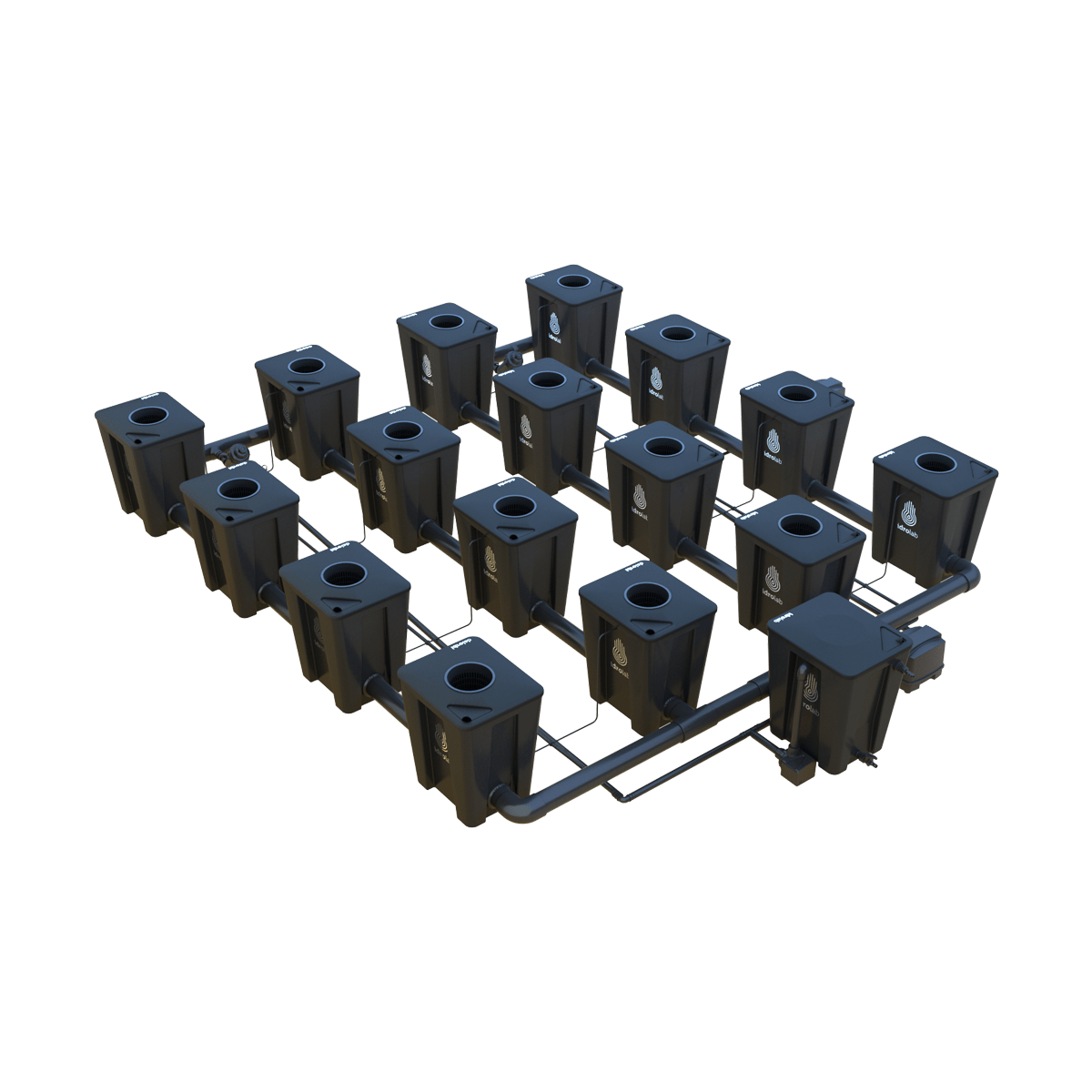

4×4 Pot System Specifications
- Dimensions – 310 x 230
- System Volume – 680 litres
- Useful Volume – 510 litres
- Blower Pump (1pm) – 80 x 2
- Aeration Pump (lpm x litres) – 0.3
- Water Pump (lph) – 5800
- Power (watts) – 210
- Recommended Reservoir – 500
- Supplied Chiller – Teco HY1000 water chiller
4×6 Pot System Specifications
- Dimensions – 445 x 230
- System Volume – 1000 litres
- Useful Volume – 750 litres
- Blower Pump (1pm) – 80 x 3
- Aeration Pump (lpm x litres) – 0.32
- Water Pump (lph) – 8300
- Power (watts) – 380
- Recommended Reservoir – 750
- Supplied Chiller – Teco HY2000 water chiller
3×3 Pot System Specifications
- Dimensions – 255 x 170
- System Volume – 400 litres
- Useful Volume – 300 litres
- Blower Pump (1pm) – 80
- Aeration Pump (lpm x litres) – 0.27
- Water Pump (lph) – 2500
- Power (watts) – 130
- Recommended Reservoir – 300
- Supplied Chiller – Teco HY500 water chiller

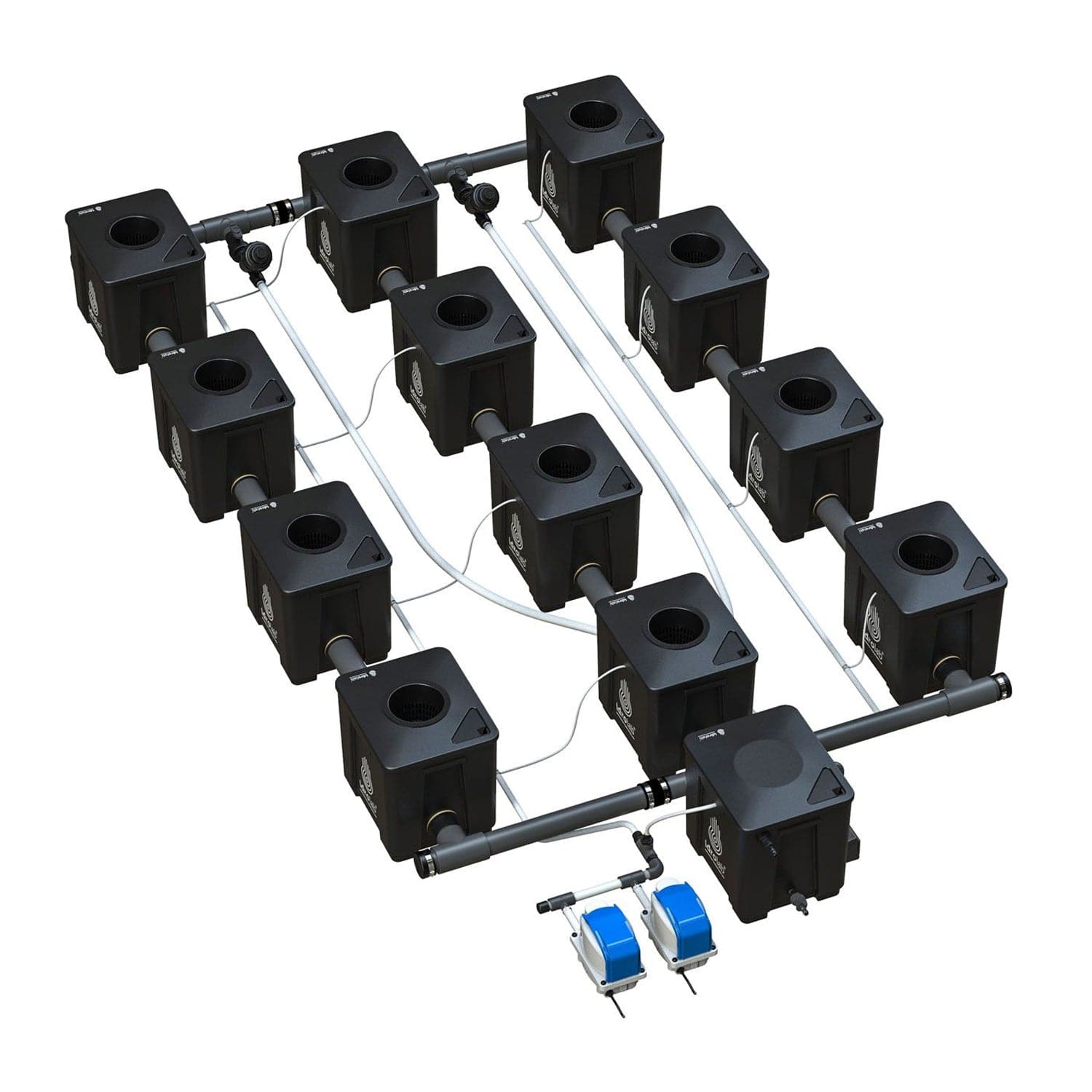

3×4 Pot System Specifications
- Dimensions – 310 x 170
- System Volume – 520 litres
- Useful Volume – 390 litres
- Blower Pump (1pm) – 80 x 2
- Aeration Pump (lpm x litres) – 0.3
- Water Pump (lph) – 3800
- Power (watts) – 162
- Recommended Reservoir – 400
- Supplied Chiller – Teco HY500 water chiller
2×2 Pot System Specifications
- Dimensions – 175 x 110
- System Volume – 200 litres
- Useful Volume – 150 litres
- Blower Pump (1pm) – 60
- Aeration Pump (lpm x litres) – 0.5
- Water Pump (lph) – 2500
- Power (watts) – 105
- Recommended Reservoir – 150
- Supplied Chiller – Teco HY150 water chiller
2×3 Pot System Specifications
- Dimensions – 255 x 110
- System Volume – 280 litres
- Useful Volume – 210 litres
- Blower Pump (1pm) – 60
- Aeration Pump (lpm x litres) – 0.28
- Water Pump (lph) – 2500
- Power (watts) – 105
- Recommended Reservoir – 200
- Supplied Chiller – Teco HY500 water chiller
