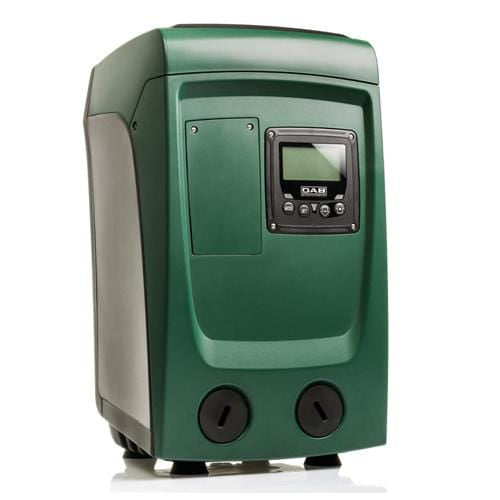

DAB E.Sybox Mini 3 Pump

Overview

Esybox Mini 3 has a different appearance than any other booster set and is small and completely integrated. Once you install and use it, you realize that the real difference is in the comfort and performance. Esybox Mini 3 uses the most advanced DAB technologies to create constant pressure according to the system demands and thus an optimization of energy consumption. Suitable for use with nutrient solution or clean water in gardening applications. The new 3-rotor model ensures further noise reduction and energy consumption.

Benefits

• High performing
• Small, integrated design
• Optimises energy consumption to increase efficiency
• Quieter running than previous models
• Can be used with either plain water or nutrient solution

Specifications

• Operating Range: Flow rate up to 80l/min; head up to 55m
• Pumped Liquid: Clean, free from solids or abrasive substances, non viscous, non aggressive, non crystallized and not chemically neutral
• Liquid Temperature: From 0°C to + 35°C for domestic use and from 0°C + 40°C for other use
• Maximum Suction : 8 meters
• Maximum Operating Pressure: 8 bar (800 kPa)
