Opticlimate Water Coolers

DISCLAIMER: This is a specialist product that needs to be ordered in. Once your order has been placed, we will contact you with the lead time.

Overview

These commercial water coolers effectively lower the temperatures of the hot water that’s generated by your OptiClimate Revomax systems. Operating within a closed loop, the water cooler eliminates any possible evaporation. Its cooling mechanism works by transferring heat from a liquid to the colder ambient air, necessitating outdoor placement of the water cooler unit. Once it has been filled, this system requires no further top ups as the water or glycol remains contained within.

General Information

When selecting your water cooler, it's important to select a model with at least the same kW rating as your Opticlimate Revomax unit.

For example, for the Revomax 6000, you would need the 9kW Water Cooler.

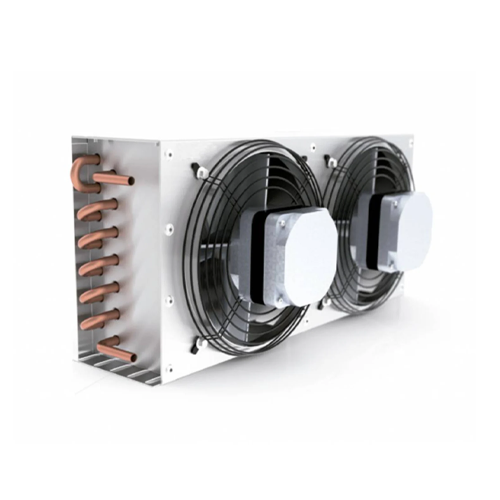

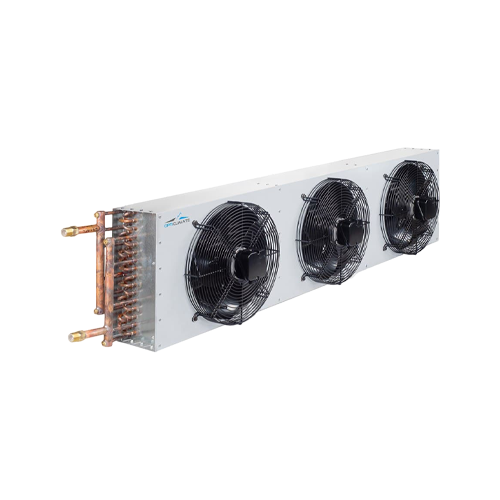

Compact Vertical:

This is a small and lightweight water chiller that's ideal for small spaces in residential and commercial buildings.

• Capacity: from 4 to 53 kW
• Tube diameter: 3/8” smooth inner surface (S) and grooved
inner surface (R)
• Fin spacing: 2,1 mm
• Fan motor diameters: 350 mm - 4 and 6 poles
• Available number of fan motors: from 1 to 2x3 fan motors

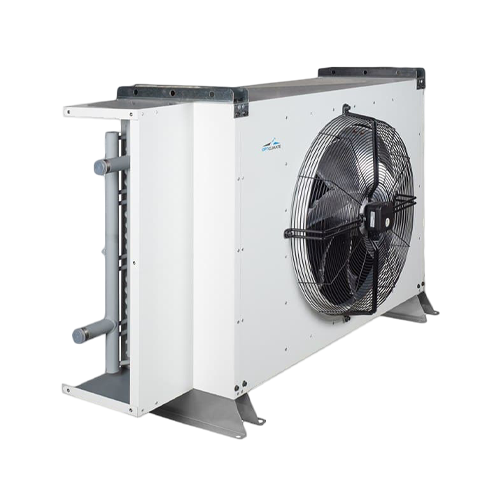

Industrial Vertical:

A solid chiller with a large cooling capacity.

• Capacity: from 14 to 280 kW
• 3/8” tube diameter: grooved inner surface and high-efficiency fin with 2..1 mm
spacing for turbo models
• 3/8” tube diameter: smooth inner surface and corrugated fin with 2.1 mm spacing
for standard models
• Fan motor diameters: 450 mm, 500 mm and 630 mm - 4 poles, 6 p

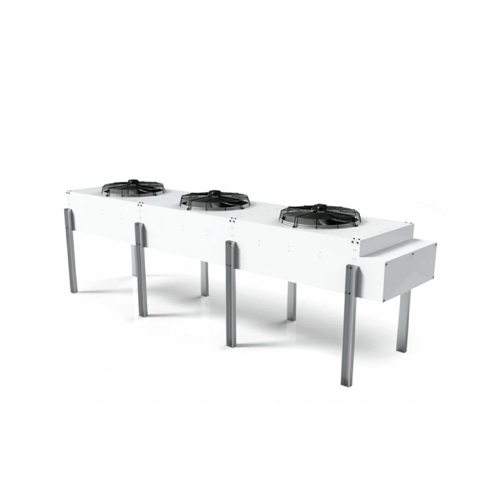

Industrial Horizontal:

Another solid water chiller with a large cooling capacity.

• Capacity: 32kW (to 626 kW on request)
• 3/8” tube diameter: grooved inner surface and high-efficiency fin with 2.1 mm
spacing for turbo models
• 3/8” tube diameter: smooth inner surface and corrugated fin with 2.1 mm spacing
for standard models
• Fan motor diameters: 800 mm and 910 mm - 6 poles, 8 poles and 12 poles
• Available number of fan motors: from 1 to 2x5 fan motors

Benefits

• Energy usage is minimal.
• Significant distances can be covered between indoor and outdoor units.
• Eliminates the need for air conditioning technicians and cooling gases.
• Operates quietly, emitting only 28 dB(A) of noise.
• Operates as a fully sealed system, requiring no additional water once filled.
• Allows for connection of multiple indoor units to a single appropriately sized outdoor unit.
