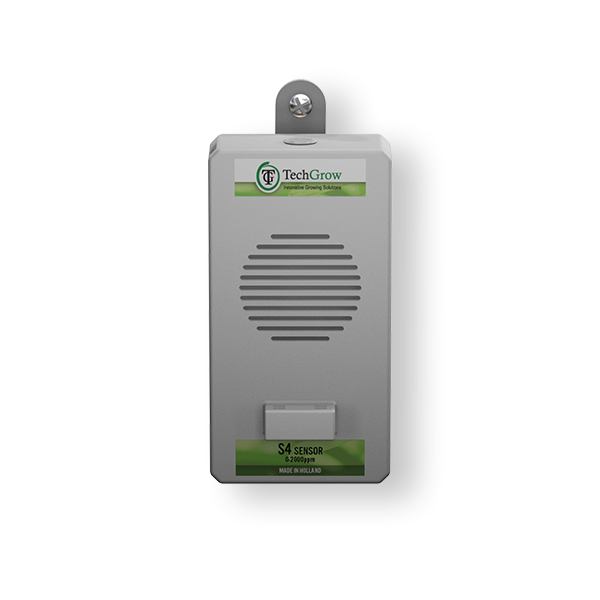

TechGrow - Sensor S-4 / 0-2.000PPM

Overview

Achieve optimal conditions in your greenhouse with the smart S-4 Sensor 2,000 ppm from TechGrow. This all-in-one sensor measures the CO2 concentration, relative humidity and temperature in your room, and detects light.

The built-in light sensor enables automatic switching between day and night mode. If desired, you can manually set the light sensor to a non-stop day mode by means of a DIP switch.

General Information

The S-4 Sensor 2,000 ppm has a manual calibration function that allows you to calibrate the CO2 sensor in fresh air at 400 ppm, if necessary (this calibration menu can only be accessed via a CO2 controller). To prevent unwanted calibration, the sensor is equipped with an extra DIP switch.

The S-4 Sensor 2,000 ppm is compatible with all TechGrow controllers, and adjustable in steps of 10 ppm.

Benefits

• Measures CO2 concentration, relative humidity and temperature in your room
• Very accurate measurement by the NDIR sensor (non dispersive infrared sensor)
• Detects light through the built-in light sensor
• Enables automatic switching between day and night mode
• Possibility to manually set the built-in light sensor to a non-stop day mode
• Manual calibration & test CO2 sensor
• Calibration with calibration gas (only by TechGrow)
• Measurement range: 0 2,000 ppm
• Adjustable in steps of 10 ppm
• Temperature range: - 40 °C to 100 °C
• Rate of measurement: every second
• 1 UTP port
• Compatible with all TechGrow controllers
