UPRtek PAR200

Overview

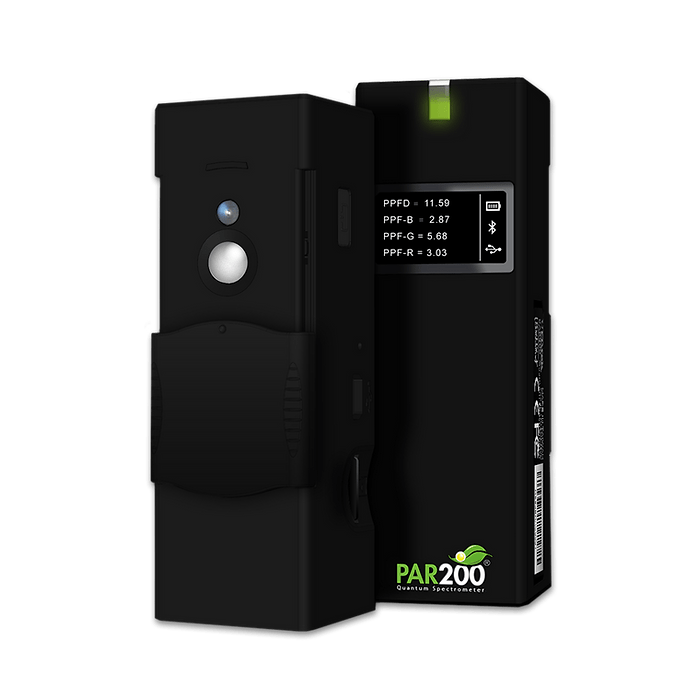

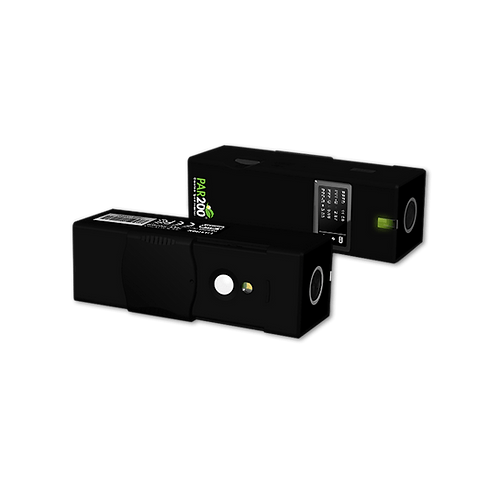

The PAR200 Quantum Spectrometer from UPRtek is a handheld measuring device that focuses on measuring the output of grow lights. It operates within the PAR spectra and displays PPFD readings in μmol/ m2/s and PPF in μmol/s.

General Information

The perfect tool for ensuring your plants are receiving the correct levels of light for maximised growth at all times. Enriched with a high resolution, and extended spectral range to deliver accurate results at all times. The PAR200 is capable of analysing, comparting and reporting data straight from your smartphone, or PC.

Benefits

• Compact, sleek, portable design

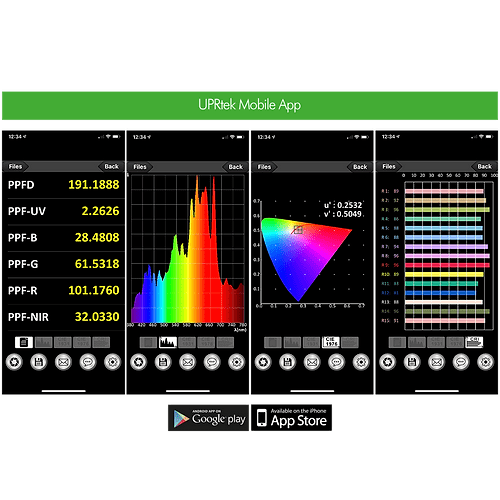

• Connects to a user friendly smartphone app
• Integrated display
• Integrated flicker measurements
• Stores data on an SD card
• Stores data on a smartphone

Technical Specifications

• Sensor: Advanced CMOS Linear Image Sensor
• Spectral Bandwidth: Approximately 12 nm
• Receptor Size: Ø 6.6 ± 0.1 mm
• Cosine Correction: Up to 80° angle
• Measurement Range: 70 ~ 70000 Lux
• Wavelength Range: 380 ~ 780 nm
• Integration Time Range: 6 ~ 1000 ms
• Operation Mode: Standalone / Bluetooth / USB / System Integrated by RS485 MODBUS
• Capture Function: Single time / Continuous 365 days / Continious capture by USB or RS485 ( MODBUS ) connection
• Integration Mode: Auto / Manual integration mode by USB or RS485 ( MODBUS ) connection
• Standalone Measurement Results: 1. PPFD, PPF-B, PPF-G, PPF-R / 2. PPF-UV, PPF-FR, PFD, CCT / 3. Spectrum Graphics / 4. Illuminance / LUX, Foot Candle, Lampda P, Lampda D / 5. CIE 1931 / CIE 1976 U.C.S Chromaticity Value
• Digital Resolution: 16 bits
• Dark Calibration: Yes
• Stray Light: -25 dB max.
• Wavelength Data: 1 nm, 550nm single-frequency with a measurement range of ± 40nm.
• Wavelength Reproducibility: ± 1 nm (Input source must be a stable light source.)
• Display: 0.96” 128x64 mono OLED Panel
• Bluetooth: 3.0 / 4.0 compatible with iOS and Android / Rasberry Pi
• Max. Files: 2000 Files @ 2GB SD Card
• Battery Operation Time: 3 hours / Fully Charged
• Battery / Power Suppply: 700 mAh /Rechargeable Li-ion Battery | AC/DC power charger
• Data Output Interface: Micro SD Card (SD2.0, SDHC / above 1GB~up to 32G /Mini USB Port ( USB 2.0 )
• Data Format: MicroSoft Office Excel csv and xls compatible
• USB Port: Compatible software uSpectrum PC laboratory software
• RS485 port: compatible with PLC MODBUS Protocol
• Dimensions: 33 x 33 x 90 mm ( H x W x D )
• Weight including Battery: 75 g
• Language Selection: English “standalone only” / French / Spanish / Italian / Russian / Traditional Chinese / Simplified Chinese / Japanese
